Tegui Flush-Mount Boxes for Video Intercom: 1, 2, 3, and 4 Modules
Tegui flush-mount boxes are the structural element that allows modular door panels to be installed directly into the wall, providing a clean, professional finish perfectly integrated into the facade. In this guide, we explain the differences between the four available models so you can choose the right one for your installation.
What is a flush-mount box?
A flush-mount box is the support installed inside the wall (in a pre-made cavity) on which the video intercom panel is mounted. Unlike surface boxes, flush-mount boxes are integrated into the wall, leaving only the front panel visible.

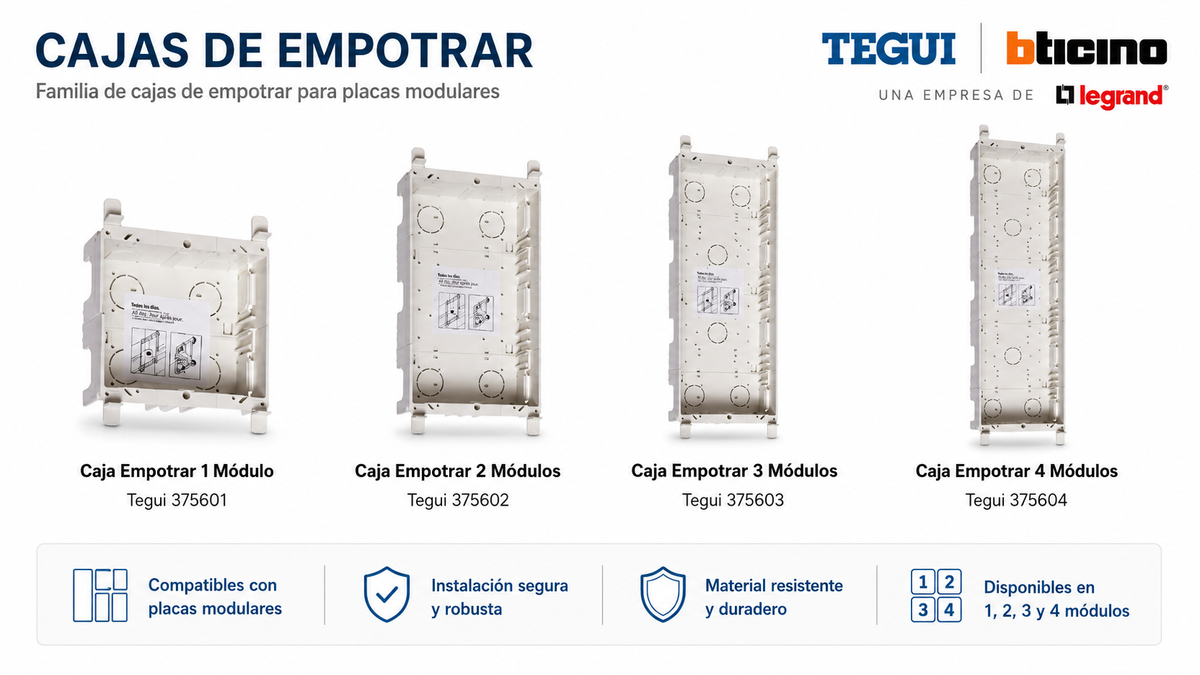

Available models
Flush-Mount Box 1 Module – Tegui 375601
The most compact solution. Ideal for simple installations with a single module (camera or button). Perfect for entrances with a single function.
View Flush-Mount Box 1 Module (375601) →
Flush-Mount Box 2 Modules – Tegui 375602
Allows combining two functional modules: for example, camera + call button. The most common option in standard residential installations.
View Flush-Mount Box 2 Modules (375602) →
Flush-Mount Box 3 Modules – Tegui 375603
Three modules for more complete installations: camera + button + card reader or additional module. Ideal for communities or entrances with integrated access control.
View Flush-Mount Box 3 Modules (375603) →
Flush-Mount Box 4 Modules – Tegui 375604
The highest capacity model in the flush-mount range. Allows installation of camera + keypad + card reader + multiple buttons. For complex installations or buildings with several entrances.
View Flush-Mount Box 4 Modules (375604) →
How to choose the number of modules?
The number of modules depends on the elements you want to install on the door panel:
- 1 module: Camera only or button only
- 2 modules: Camera + button (standard installation)
- 3 modules: Camera + button + card reader/keypad
- 4 modules: Complete installations with multiple functions
Flush-Mount vs. Surface
If you cannot do construction work or the installation is outdoors and exposed, check our guide on Tegui surface boxes. If you want a finish fully integrated into the wall, flush-mount boxes are the right choice.
Common features of the entire range
- Compatible with Tegui modular panels
- Durable and resistant material
- Secure and robust installation
- Manufactured by Tegui (BTicino / Legrand Group)
