What is a surface box and when should it be used?
The surface box is the mounting element that allows installing a Tegui video door entry panel directly on the wall, without the need for recessing or construction work. Unlike the box with visor, this model does not include upper protection against rain, making it ideal for indoor installations, under porches, or in weather-protected areas.

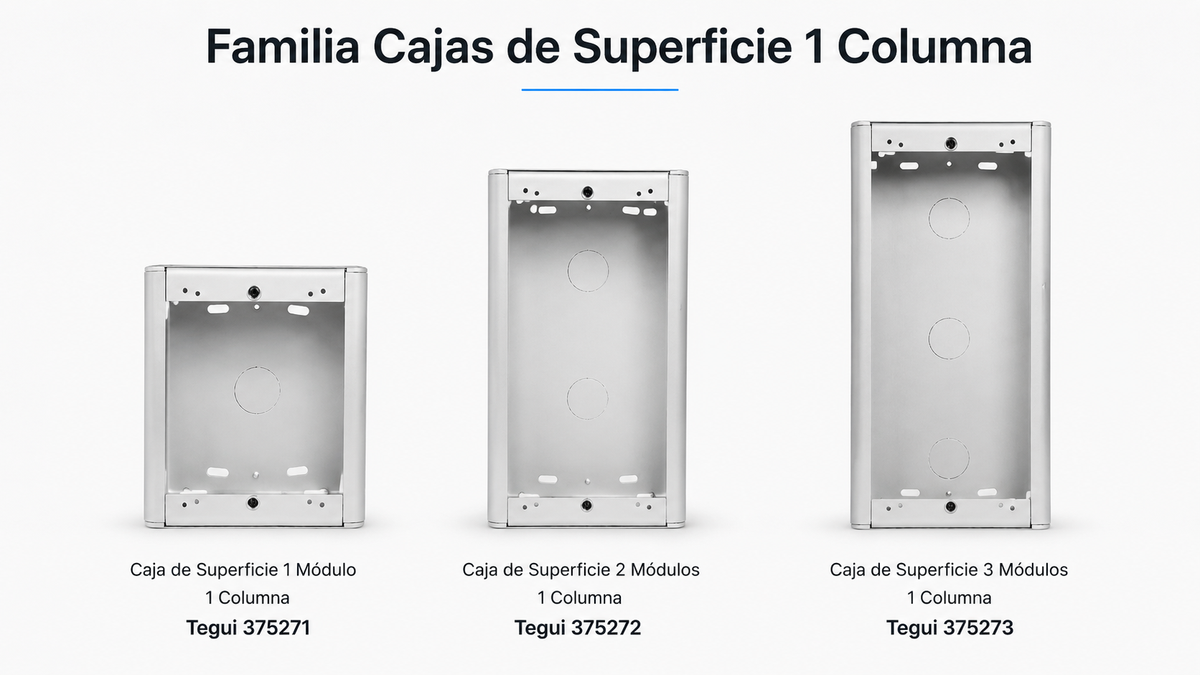

Available in 1, 2, and 3 modules in a 1-column format, it adapts to any Tegui panel configuration.
Available models and prices
Surface Box 1 Column – 1 Module | Tegui 375271
The most compact model. For simple installations with a single module in rain-protected areas.
- Reference: Tegui 375271
- Price: 42,60 €
- View product →
Surface Box 1 Column – 2 Modules | Tegui 375272
The most common. Allows combining camera + button or camera + keypad in protected domestic installations.
- Reference: Tegui 375272
- Price: 55,07 €
- View product →
Surface Box 1 Column – 3 Modules | Tegui 375273
The highest capacity model. For installations with camera + keypad + card reader or multiple buttons in protected areas.
- Reference: Tegui 375273
- Price: 72,30 €
- View product →
Surface box vs. box with visor: which one do I need?
| Feature | Surface box | Box with visor |
|---|---|---|
| Rain protection | No | Yes |
| Installation | Indoor / protected area | Exposed outdoor |
| Price (1 module) | 42,60 € | 96,59 € |
💡 Quick rule: if the panel is exposed to direct rain, choose the box with visor. If it is under a porch, indoors, or in a covered area, the surface box is sufficient and more economical.
Technical specifications
| Model | Reference | Modules | Price |
|---|---|---|---|
| Surface Box 1 Column – 1 Module | Tegui 375271 | 1 | 42,60 € |
| Surface Box 1 Column – 2 Modules | Tegui 375272 | 2 | 55,07 € |
| Surface Box 1 Column – 3 Modules | Tegui 375273 | 3 | 72,30 € |
Common features:
- Material: satin aluminum
- Installation: surface (not recessed)
- Without protective visor
- Format: 1 column (vertical)
- Compatibility: Tegui Sfera New range modules
Frequently asked questions
Does it include the modules?
No. The surface box is the structural element. Functional modules are purchased separately.
Can I use it outdoors?
Only in protected outdoor areas (under porch, canopy, or covered area). If the panel is exposed to rain, we recommend the box with visor.
Is it compatible with all Tegui modules?
Yes, compatible with the Tegui / BTicino Sfera New range modules.
Do you have questions about which model you need? Contact us and we will advise you without obligation.
