The Sfera New series from BTicino/Tegui is one of the most installed video door entry panel ranges in Spain. In this guide, we explain everything you need to know as an installer: models, compatibilities, configuration, and accessories.
What is the Sfera New panel?
The Sfera New is the BTicino/Tegui outdoor video door entry panel designed for 2-wire BUS SCS systems. It stands out for its modular design, integrated wide-angle camera, and easy installation. It is compatible with the entire range of BTicino/Tegui 2-wire monitors.

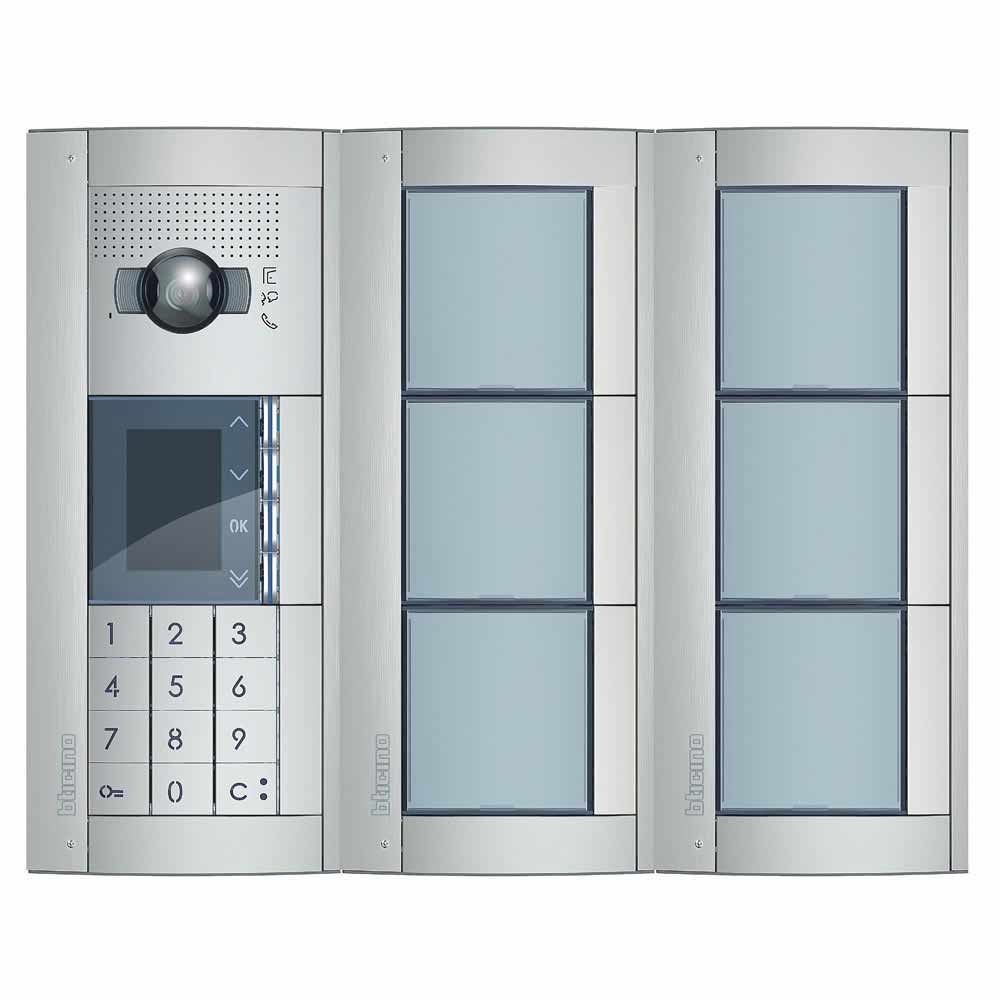

Main models of the Sfera New series
- Sfera New with camera – The most common in residential installations. Includes a color wide-angle camera, built-in microphone, and speaker.
- Sfera New with card reader – Adds RFID card access control, ideal for communities.
- Sfera New with keypad – Features a numeric keypad for PIN code entry.
Compatibility with monitors
The Sfera New panels are compatible with all BTicino/Tegui 2-wire BUS SCS monitors, including:
- Tegui Monitor Series 8 (ref. 374494)
- Tegui Monitor Classe 100X16E WiFi (ref. 344786)
- Monitors from the Swing series
- BTicino audio/video module 351200
Step-by-step installation
1. Wiring preparation
The Sfera New panel only requires 2 BUS cables. There is no polarity, so the connection is very simple. Make sure the cable has the appropriate gauge according to the distance to the power supply.
2. Mounting the flush or surface box
The Sfera New supports installation in a standard flush box or on the surface with an adapter frame. Secure the box to the wall before connecting the cables.
3. Connection to the BUS
Connect the 2 BUS cables to the panel terminals. Tighten the screws well and check that there are no loose wires.
4. Address configuration
Using the panel’s DIP switches, set the call address corresponding to each dwelling. Refer to the technical manual for the address table.
5. System test
Restore power and check that the call reaches the monitor correctly, the image is clear, and the door opener works.
Compatible accessories and modules
- BTicino audio/video module 351200 – To expand the system with additional modules
- Frames and protective visors for outdoor use
- Additional call modules for multiple dwellings
- BUS power supplies for long installations
Common installation errors
- ❌ Using cables with insufficient gauge over long distances
- ❌ Incorrectly configuring the address DIP switches
- ❌ Mixing components from 2-wire and 4+N systems
- ❌ Exceeding the maximum number of devices per BUS
