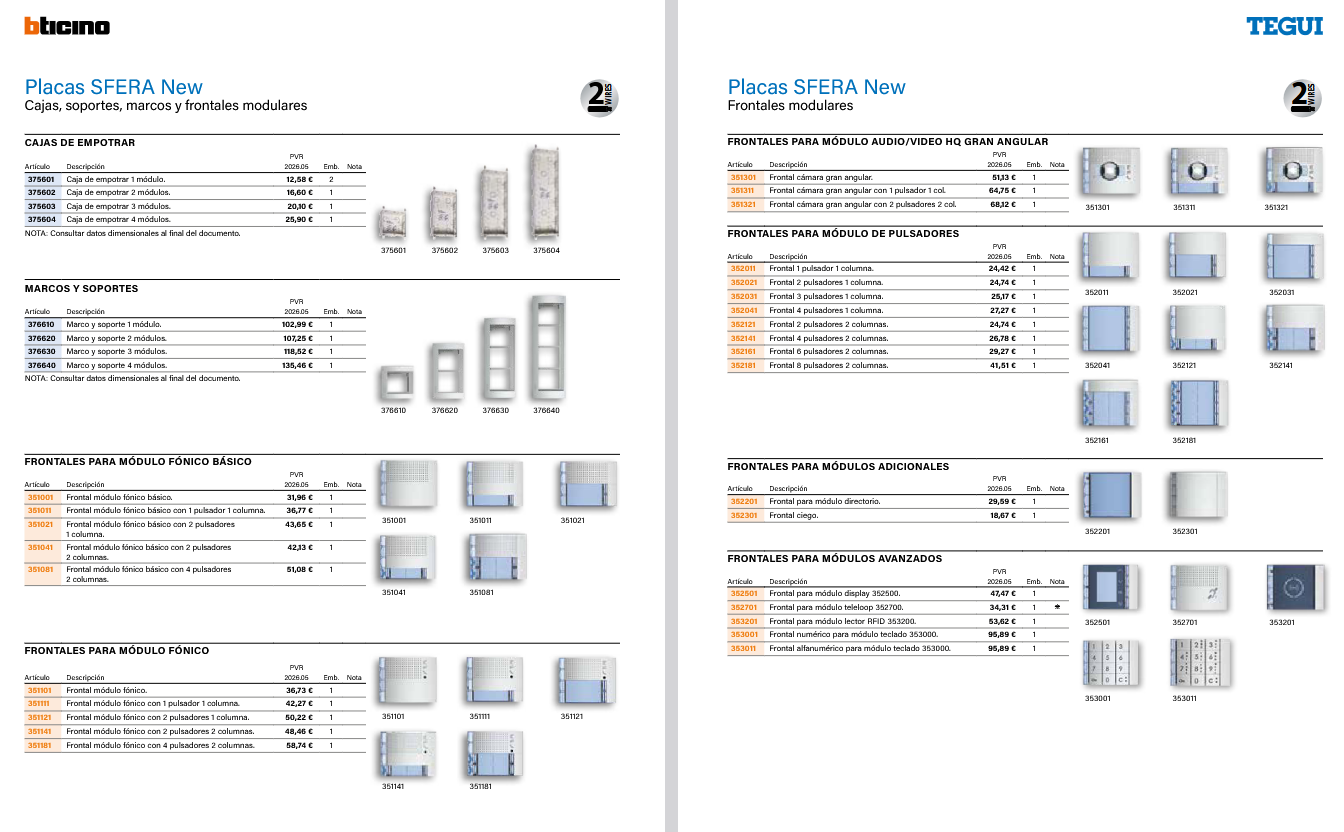

SFERA New Panels: how the modular system is composed
The Tegui SFERA New street panel is a 2-wire modular video intercom system that combines three elements: flush-mount box, frame and support, and modular fronts. This architecture allows the panel to be adapted exactly to the number of residences and required functions.
1. SFERA New Flush-Mount Boxes
Structural base of the panel. Installed on the wall and houses the electronic modules and fronts:
| Reference | Modules | Installer price | Typical use |
|---|---|---|---|
| 375601 | 1 | 7,65 € | 1 residence, audio only |
| 375602 | 2 | 8,34 € | 1 residence with video |
| 375603 | 3 | 10,12 € | Video + extra buttons |
| 375604 | 4 | 12,89 € | Large installations |
👉 375601 | 375602 | 375603 | 375604
2. Allmetal Frames and Supports SFERA New
Aesthetic and structural element that connects the flush-mount box with the fronts. High-quality metallic finish:
| Reference | Modules | Installer price |
|---|---|---|
| 376610 | 1 | 51,24 € |
| 376620 | 2 | 53,36 € |
| 376630 | 3 | 69,89 € |
| 376640 | 4 | 67,41 € |
👉 376610 | 376620 | 376630 | 376640
3. Fronts for Basic Audio Module (ref. 351000)
| Reference | Description | View price |
|---|---|---|
| 350001 | Basic audio module front | View price |
| 351011 | 1 button 1 column | View price |
| 351021 | 2 buttons 1 column | View price |
| 351041 | 2 buttons 2 columns | View price |
| 351081 | 4 buttons 2 columns | View price |
4. Fronts for Audio Module with LED (ref. 351100)
| Reference | Description | View price |
|---|---|---|
| 357101 | Audio module front | View price |
| 351111 | 1 button 1 column | View price |
| 351121 | 2 buttons 1 column | View price |
| 351141 | 2 buttons 2 columns | View price |
| 351181 | 4 buttons 2 columns | View price |
5. Fronts for HQ Wide-Angle Audio/Video Module (ref. 351500)
| Reference | Description | View price |
|---|---|---|
| 350301 | Wide-angle camera front | View price |
| 351311 | Camera + 1 button 1 column | View price |
| 351321 | Camera + 2 buttons 2 columns | View price |
6. Fronts for Additional Button Modules
| Reference | Description | View price |
|---|---|---|
| 352011 | 1 button 1 column | View price |
| 352021 | 2 buttons 1 column | View price |
| 352031 | 3 buttons 1 column | View price |
| 352041 | 4 buttons 1 column | View price |
| 352181 | 8 buttons 2 columns | View price |
7. Fronts for Additional and Advanced Modules
| Reference | Description | View price |
|---|---|---|
| 352201 | Directory module front | View price |
| 352301 | Blank front | View price |
| 352501 | Display module front 352500 | View price |
| 352701 | Teleloop module front | View price |
Frequently Asked Questions (FAQ)
What flush-mount box do I need for a panel with a camera and 4 buttons?
At least a 2-module box (ref. 375602): one for the camera module 351500 and another for the button module. For more buttons, choose the 3 or 4 module box.
Are Allmetal frames mandatory?
Yes, the frame and support are essential for the correct assembly of the SFERA New system. They connect the flush-mount box with the fronts and provide the final finish to the panel.
Can I mix fronts from the basic audio module and the audio module with LED?
No. Each front is specifically designed for its module: basic 351000 or with LED 351100.
Where to buy SFERA New boxes and fronts in Spain?
At tegui-distel.com, official Tegui distributor in Spain, with shipping to the entire Peninsula, Balearic Islands, and Portugal.
Related articles
- 👉 Complete Guide to the Tegui SFERA New System →
- 👉 SFERA New and Robur Electronic Modules (351500, 351000, 351100) →
Need help setting up your SFERA New panel? Contact our technical team and we will prepare the exact combination for you.
