Before Buying: Plan Your Installation
Installing a complete video intercom requires more than just buying the monitor. To ensure everything works correctly from day one, it’s important to know which components you need, what type of installation you have, and what features you want. This guide helps you remember everything.
Component Checklist
✅ Outdoor Panel (mandatory)

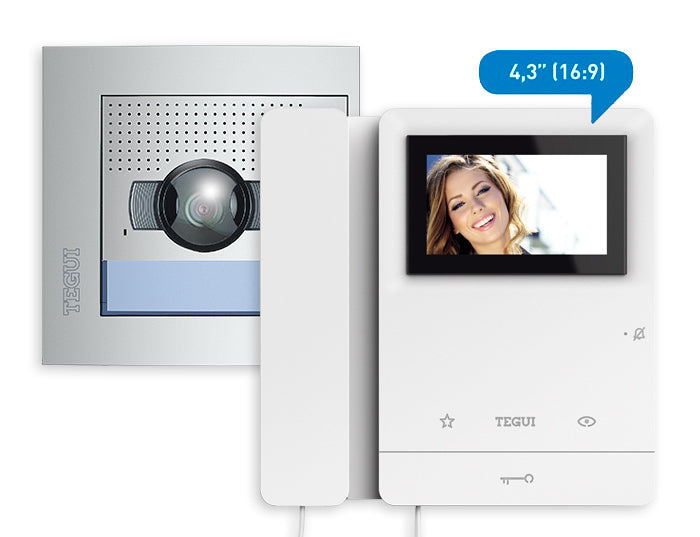

The outdoor panel is the element installed next to the entrance door. It includes a camera, microphone, speaker, and call button. At Tegui, the Sfera New range is the most complete and versatile for 2-wire installations.
✅ Indoor Monitor or Phone (mandatory)
The indoor device from which you see, hear, and open the door. Choose according to your needs:
- Tegui T-72 Phone: compact, with WiFi, ideal for replacement or new installation
- M-72 Color Monitor: color screen, larger image size
- T-75: for existing Series 7 installations
✅ Power Supply (mandatory)
In most Tegui Sfera New kits, the power supply is integrated into the outdoor panel. Check that the chosen model includes it or purchase it separately.
✅ Installation Cable (mandatory)
For 2-wire systems: twisted pair cable or standard installation cable of at least 0.5 mm². The length depends on the distance between the panel and the monitor.
✅ Flush-Mount Box or Bracket (depending on installation)
Needed to flush-mount the outdoor panel into the wall. Some models include a surface mount bracket as an alternative.
✅ Frame and Finishes (optional)
For a premium finish, Tegui offers frames and brackets in different materials and colors for the Sfera New outdoor panel.
✅ Floor Distributor (for buildings)
In building installations with multiple floors, a Tegui floor distributor is needed for each floor to properly distribute the signal.
✅ Additional Monitor (optional)
If you want coverage in more than one room, add an additional monitor with the EasyKit 367910.
Pre-Installation Verification Checklist
- ☐ Do I know the type of installation (2-wire or 4+N wires)?
- ☐ Do I know how many doors and monitors I need?
- ☐ Do I want mobile phone access? (if yes, choose WiFi model)
- ☐ Is the wiring already installed or do I need to do it?
- ☐ Have I hired a professional installer?
- ☐ Do I have all the components before starting?
The Easiest Option: Complete Tegui Kit
If you don’t want to worry about individual components, the complete Tegui Sfera New kits include everything needed for installations from 1 to more than 40 homes. Check our catalog or contact our team to find the right kit for your case.
