374494 Tegui Series 8 Monitor | 2-Wire 4.3" Color Screen with Handset
SKU 374494
111,80 €

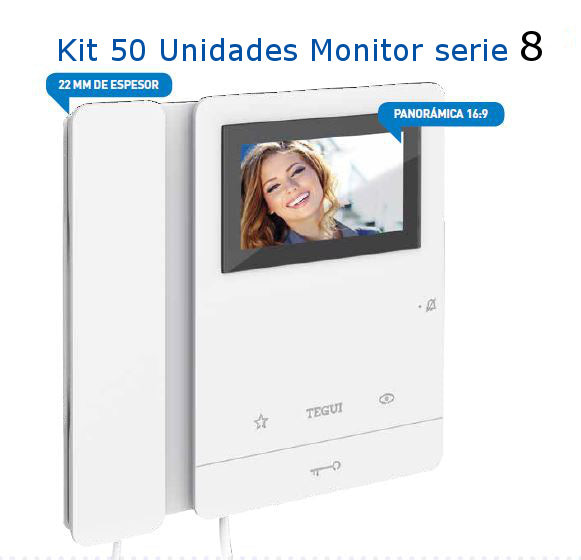

374494 Tegui Series 8 2-wire monitor with handset
The Tegui 374494 Series 8 is an indoor video door entry monitor with a 4.3-inch 16:9 color screen and handset communication. It lets you see the visitor, talk to them, and activate the door lock release from inside the property. Its surface mounting and 200 × 200 mm front panel make it easier to plan the installation or replacement of an existing device.

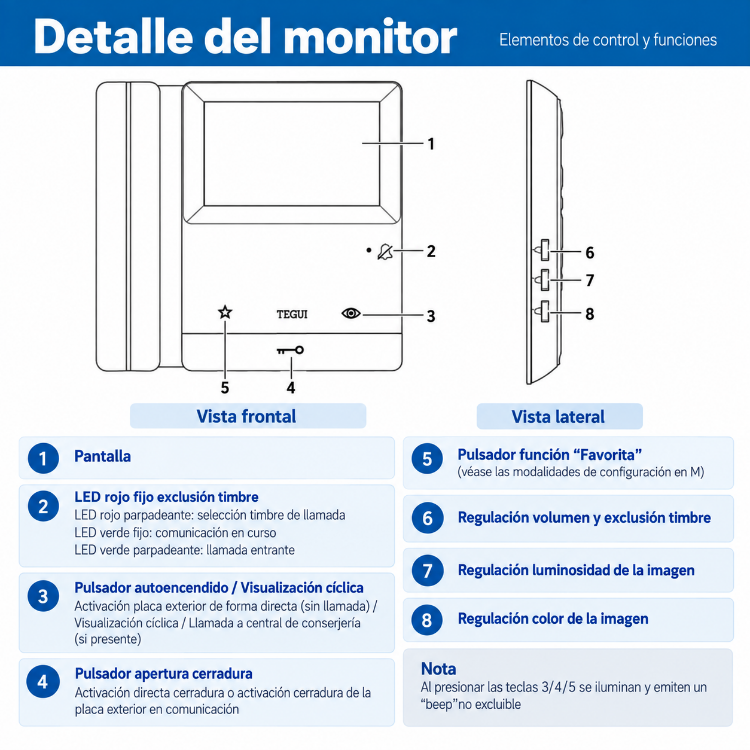

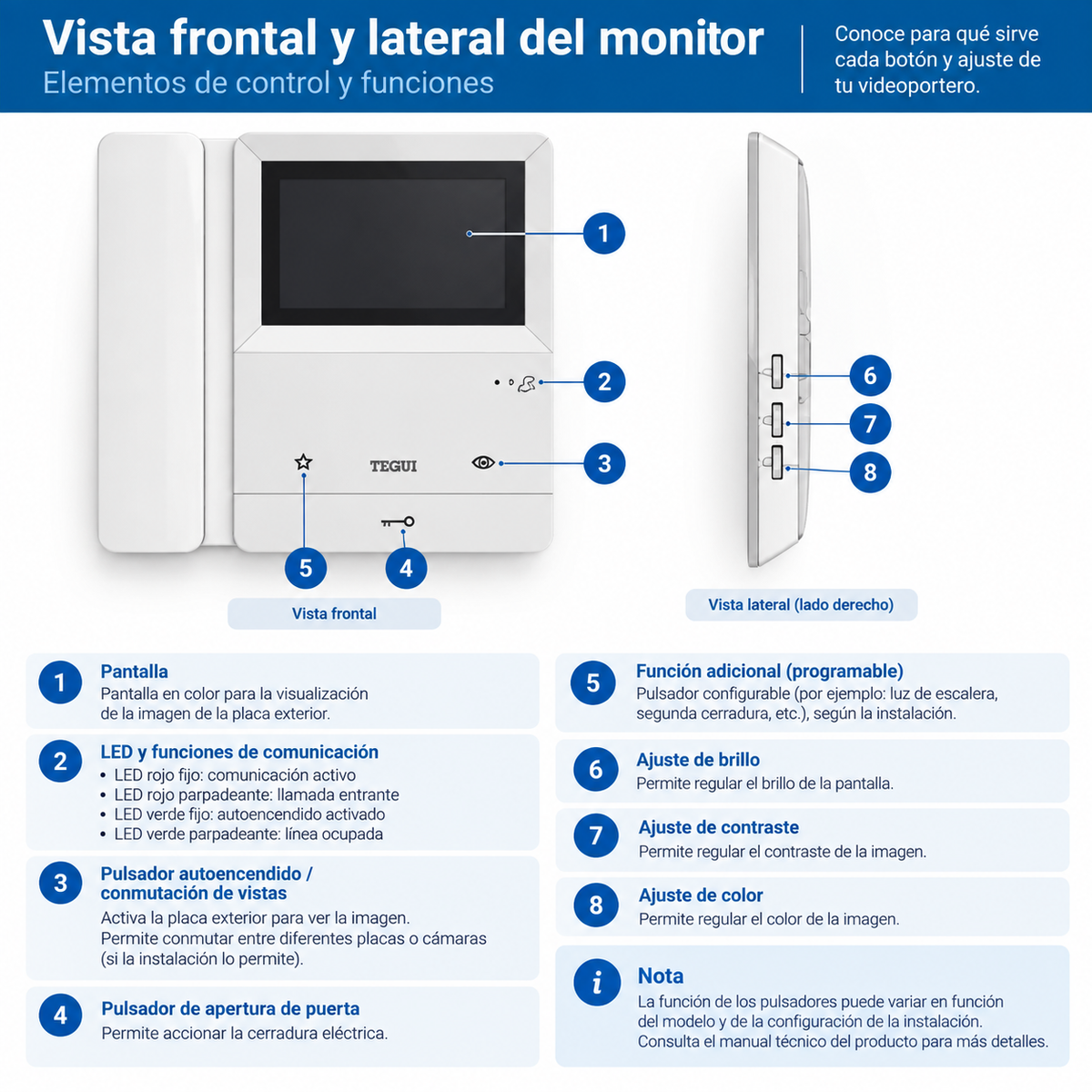

Functions and controls
- Three buttons: door lock release, automatic activation of the entrance panel, and configurable auxiliary function.
- Auxiliary function for stairway light, additional lock, additional camera, or intercom, depending on the M configurator and the devices in the installation.
- Independent adjustment of volume, call exclusion, screen brightness, and color.
- 16 selectable melodies for calls supported by the configuration.
- Handset with magnetic retention and illuminated call and communication indicators.
Dimensions and technical data
| Manufacturer reference / MPN | 374494 |
|---|---|
| Brand | Tegui |
| EAN | 8424743744946 |
| System | 2-wire video door entry, BUS SCS |
| Screen | Color, 4.3 inches, 16:9 format |
| Communication | With handset, not hands-free |
| Device dimensions | 200 × 200 × 21 mm (width × height × body depth, according to the technical drawing) |
| Individual box dimensions | 220 × 220 × 51 mm (length × width × height) |
| Weight of individual box with product | 609 g, for 1 unit, according to the manufacturer's logistics data |
| Power supply from BUS SCS | 18–27 V DC |
| Standby consumption | 10 mA |
| Maximum operating consumption | 200 mA |
| Operating temperature | 5–40 °C |
| Installation | Surface-mounted, with supplied metal base |

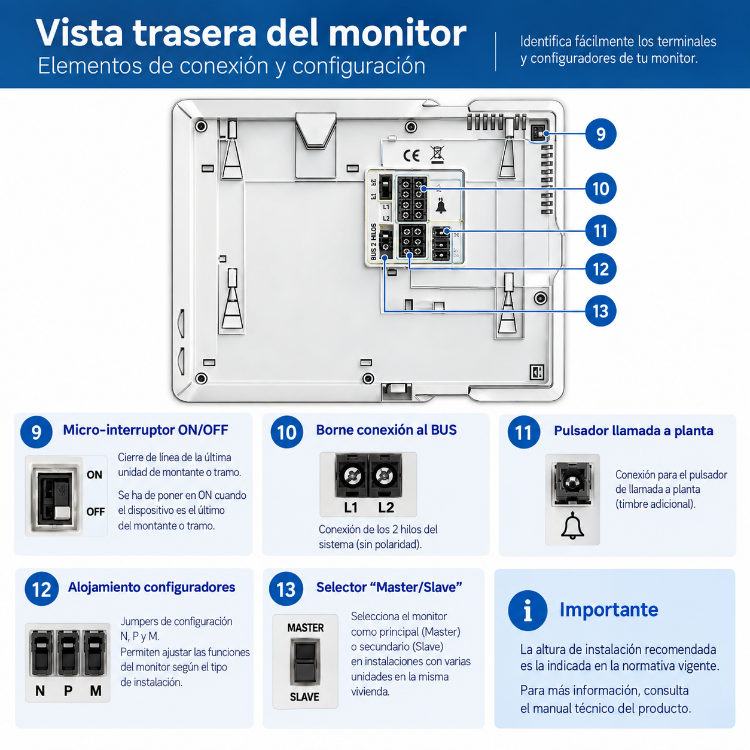

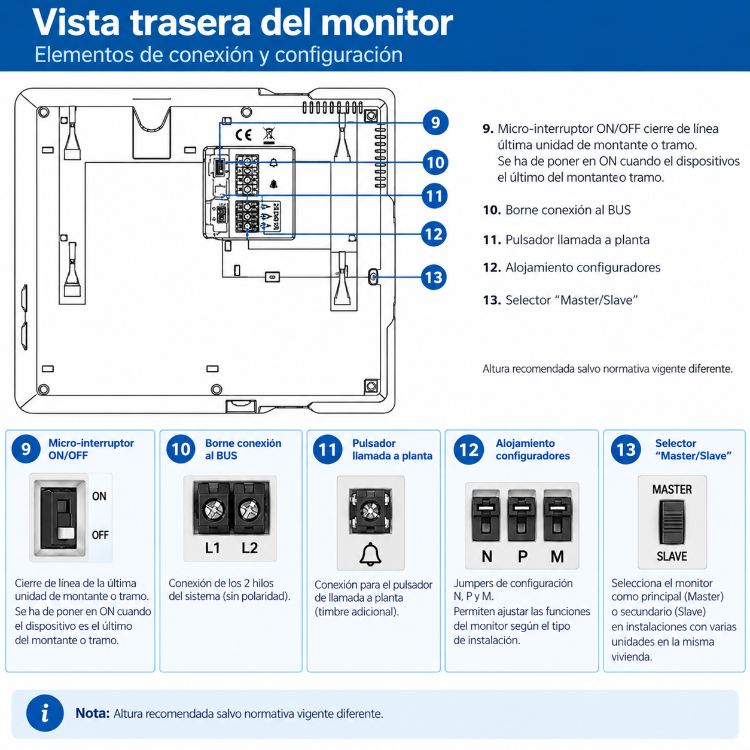

| Configuration | Physical, using N, P, and M slots |
The monitor dimensions and its box dimensions are different. The 609 g weight refers to the individual box with the product, not the net weight of the device or a shipment with additional outer packaging.
Contents and installation
This product sheet refers to the 374494 indoor monitor with surface-mount bracket included, not a complete kit with an entrance panel and power supply. Installation and configuration must be carried out by qualified professionals in accordance with the technical documentation.
Compatibility and replacement
Using two wires alone does not guarantee compatibility. Before replacing your monitor, consult Tegui Distel and provide the references of the existing device, entrance panel, and power supply, along with photographs of the connections. The N/P/M configuration and line termination must be checked. The additional camera, second lock, and intercom functions depend on the configuration and the installed devices.
Technical documentation
Tegui 374494 monitor manual: connections, configuration, and ringtone selection.
Series 8 monitor in the 2026 Tegui catalog, page 80. Catalog prices are the manufacturer's RRP; the purchase price is the one shown in this store.
Frequently asked questions
Is it hands-free?
No, conversations are carried out using the handset.
How big is it?

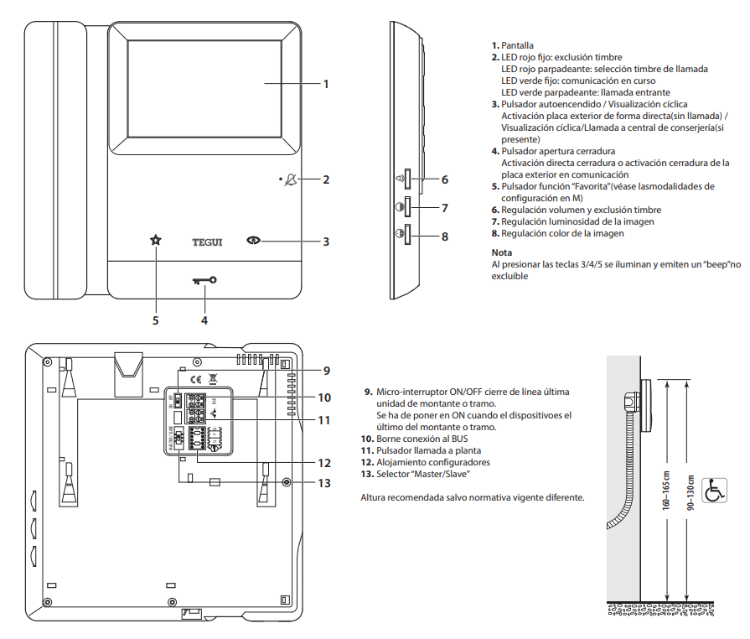

The technical drawing indicates a width of 200 mm, a height of 200 mm, and a body depth of 21 mm for the monitor. The individual box measures 220 × 220 × 51 mm.
Can I mute the call?
Yes, it has volume adjustment and a call exclusion function.
Does it have intercom?
It can be configured for intercom depending on the M mode and the installation; this should not be assumed to be enabled without checking them.
Does it include an entrance panel and power supply?
No, it is an indoor monitor with its mounting bracket.
