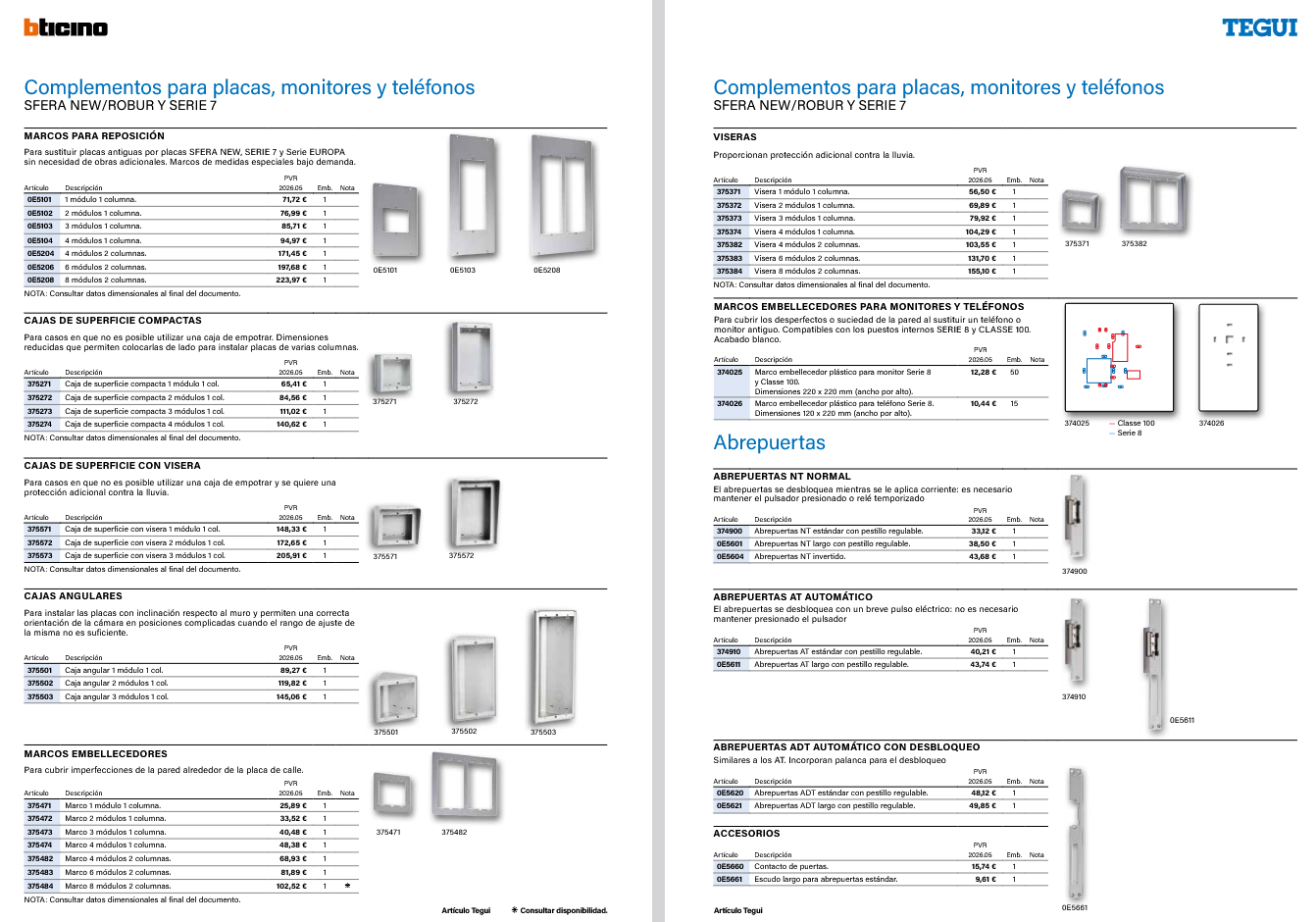

Accessories for Tegui SFERA New, Robur, and Series 7 panels
In addition to electronic modules and fronts, the Tegui SFERA New system offers a wide range of accessories to suit any installation: from replacing old panels to rain protection or surface mounting.
1. Replacement Frames
To replace old panels with SFERA New, Series 7, and SERIE EUROPA panels without additional construction. Special sizes on request.
| Reference | Description | View price |
|---|---|---|
| OE5101 | 1-module frame 1 column | Check |
| OE5102 | 2-module frame 1 column | Check |
| OE5103 | 3-module frame 1 column | Check |
| OE5104 | 4-module frame 1 column | Check |
| OE5202 | 4-module frame 2 columns | Check |
| OE5206 | 6-module frame 2 columns | Check |
| OE5208 | 8-module frame 2 columns | Check |
These frames allow installing a modern SFERA New panel in the opening of an old panel without wall chipping. Ideal for renovations and communities wanting to modernize their system without construction.
2. Compact Surface Boxes
For cases where flush mounting is not possible. Reduced dimensions allow side placement for multi-column panels:
| Reference | Description | View price |
|---|---|---|
| 375271 | Compact surface box 1 module 1 col. | Check |
| 375272 | Compact surface box 2 modules 1 col. | Check |
| 375273 | Compact surface box 3 modules 1 col. | Check |
| 375274 | Compact surface box 4 modules 1 col. | Check |
3. Surface Boxes with Visor
| Reference | Description | View price |
|---|---|---|
| 375571 | Surface box with visor 1 module 1 col. | Check |
| 375572 | Surface box with visor 2 modules 1 col. | Check |
| 375573 | Surface box with visor 3 modules 1 col. | Check |
4. Angular Boxes
To install panels with tilt relative to the wall, improving the camera angle in difficult positions:
| Reference | Description | View price |
|---|---|---|
| 375501 | Angular box 1 module 1 col. | Check |
| 375502 | Angular box 2 modules 1 col. | Check |
| 375503 | Angular box 3 modules 1 col. | Check |
5. Panel Trim Frames
| Reference | Description | View price |
|---|---|---|
| 375471 | 1-module frame 1 column | Check |
| 375472 | 2-module frame 1 column | Check |
| 375473 | 3-module frame 1 column | Check |
| 375474 | 4-module frame 1 column | Check |
| 375482 | 4-module frame 2 columns | Check |
| 375483 | 6-module frame 2 columns | Check |
| 375484 | 8-module frame 2 columns | Check |
6. Rain Visors
Additional rain protection for flush-mounted panels. Especially recommended on exposed facades:
| Reference | Description | Installer price |
|---|---|---|
| 375371 | 1-module visor 1 column | Check |
| 375372 | 2-module visor 1 column | Check |
| 375373 | 3-module visor 1 column | Check |
| 375374 | 4-module visor 1 column | 65,62 € — View product |
| 375382 | 4-module visor 2 columns | Check |
| 375383 | 6-module visor 2 columns | 81,22 € — View product |
| 375384 | 8-module visor 2 columns | Check |
7. Trim Frames for Monitors and Telephones
To cover wall damage when replacing an old monitor. Compatible with Series 8 and Classe 100:
| Reference | Description | Installer price |
|---|---|---|
| 374025 | Monitor trim frame Series 8 and Classe 100 (228 x 220 mm) | 7,73 € — View product |
| 374026 | Telephone trim frame Series 8 (120 x 220 mm) | Check |
8. Door Opener
NT Normal Door Opener
It unlocks while powered: you must hold down the button or timed relay.
| Reference | Description | Installer price |
|---|---|---|
| 374900 | Standard NT door opener with adjustable latch | 20,44 € — View product |
| OE5601 | Long NT door opener with adjustable latch | Check |
| OE5604 | Inverted NT Door Opener | Check |
Automatic AT Door Opener
Unlocks with a brief electric pulse: no need to hold the button. The most convenient and common in modern installations.
| Reference | Description | Installer price |
|---|---|---|
| 374910 | Standard AT door opener with adjustable latch | 24,79 € — View product |
| OE5611 | Long AT door opener with adjustable latch | Check |
Mini Door Opener
Compact version for narrow door frames:
| Product | Type | Installer price |
|---|---|---|
| Mini Standard Door Opener (NC) | Normal | 14,92 € — View product |
| Mini Automatic Door Opener | AT | 17,27 € — View product |
ADT Automatic Door Opener with Release
Like the AT models, but include a manual release lever from the inside:
| Reference | Description | View price |
|---|---|---|
| OE5621 | Standard ADT door opener with adjustable latch | Check |
| OE5631 | Long ADT door opener with adjustable latch | Check |
Frequently Asked Questions (FAQ)
What is the difference between NT and AT door openers?
The NT stays unlocked while powered: you must hold the button. The AT opens with a brief pulse and locks again automatically. The AT is the most convenient and common in modern installations.
Which door opener do I need for my Tegui video intercom?
For most residential entrances, the standard AT (374910, €24.79) is recommended. If the door has a narrow frame, choose the Mini AT model. If you need manual opening from inside, select the ADT.
Are the visors compatible with all SFERA New panels?
Yes. The 375xxx visors are compatible with flush-mounted SFERA New panels. Choose the size according to the number of modules and columns on your panel.
Can I install a SFERA New panel on the surface without flush mounting?
Yes, with the compact surface boxes (375271-375274) or with visor (375571-375573). The angled boxes (375501-375503) allow tilting the panel to improve the camera angle.
Where to buy Tegui SFERA New accessories in Spain?
At tegui-distel.com, official Tegui distributor in Spain, with shipping to the entire Peninsula, Balearic Islands, and Portugal.
