346040 BTicino 2-Wire SCS BUS Audio Power Supply | 26V 600mA
SKU 346040
81,32 €
BTicino 2-Wire BUS SCS Audio Power Supply (Ref. 346040)
The BTicino 346040 Power Supply is the power supply for 2-wire BUS SCS audio door entry systems. Essential for installations with more than one block or when the wiring distance requires signal reinforcement. Supports up to 56 internal units.
Main features
- System: 2-Wire BUS SCS — Tegui / BTicino audio door entry
- BUS output voltage: 26V DC — 600 mA
- Input power supply: 110-240V AC / 50-60 Hz
- Capacity: up to 56 internal units
- Mounting on DIN rail
- Original BTicino — Legrand Group product

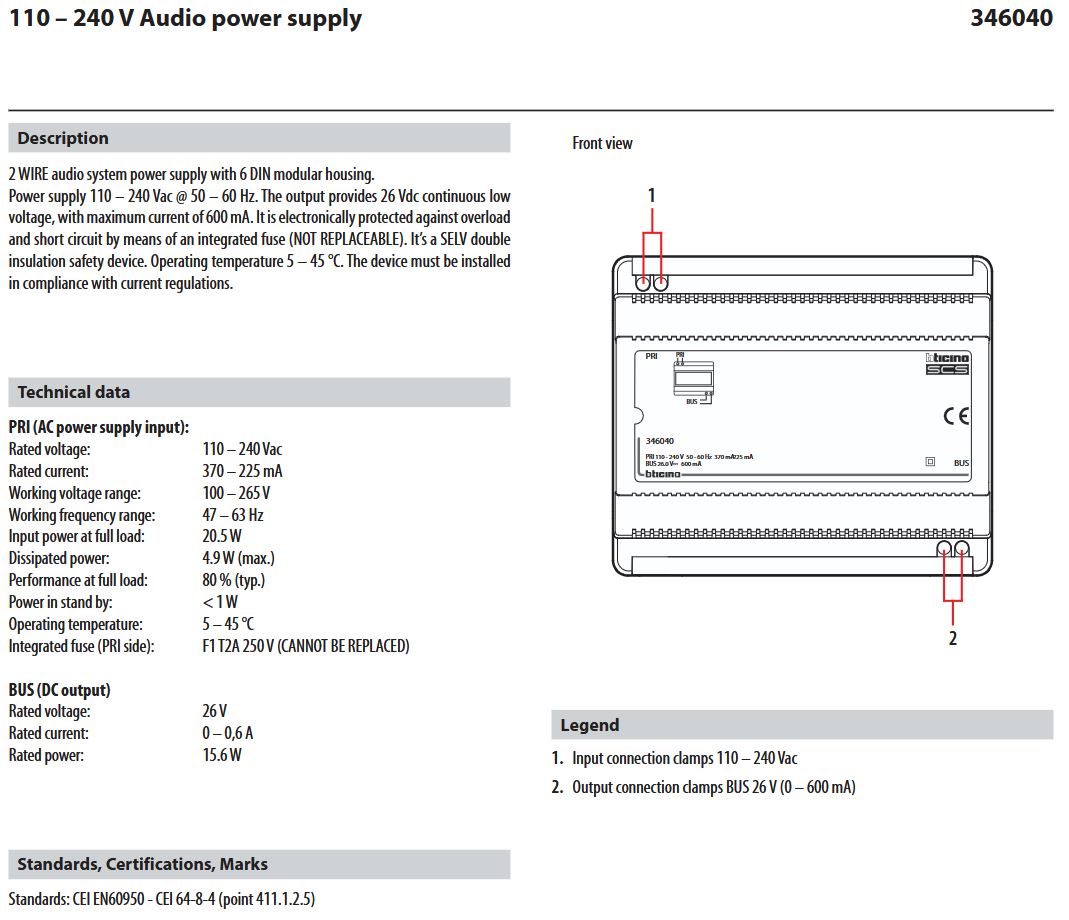

Technical specifications
| Reference | 346040 |
|---|---|
| System | 2-Wire BUS SCS |
| Input voltage | 110-240V AC / 50-60 Hz |
| Input current | 370 mA (110V) / 225 mA (240V) |
| BUS output voltage | 26V DC |
| BUS output current | 600 mA |
| Max. internal units | 56 |
| Mounting | DIN rail |
| Brand | BTicino / Tegui — Legrand Group |
When do I need this power supply?
It is required when the 2-wire installation exceeds the capacity of the power supply integrated into the entrance panel, or when multiple blocks or buildings are connected to the same BUS SCS system.
Frequently asked questions
Is it compatible with all BTicino / Tegui 2-wire systems?
Yes, it is compatible with the entire range of BTicino and Tegui 2-wire BUS SCS audio door entry systems (Series 7, Series 8, Sfera New, etc.).
How long does delivery take?
We ship from Spain. Usual delivery time: 24-48 business hours to mainland Spain.
Does it come with a warranty?
Yes, 3-year official warranty. We are official BTicino / Tegui distributors in Spain.
